Emergency Lighting Inverters
The widest range from a single manufacturer — 35W to 400kW. Pure sine wave output, zero transfer time, built to order in Los Angeles since 1975.
Responds within 2 business hours
Range
35W – 400 kW
Runtime
90 – 120 min
Transfer
Zero (online)
Configurations
1Ø & 3Ø
10 Models Available
Click any model for full specs, data sheets, and CAD files
Power Wave 1
Single Phase, 2.1 – 17kW
Single phase emergency lighting inverter listed to UL924 and UL1778. Pure sine wave output providing 90-120 minute battery backup with zero transfer time, TVSS surge suppression, and microprocessor-controlled LCD self-testing.
Specs & Data Sheets →

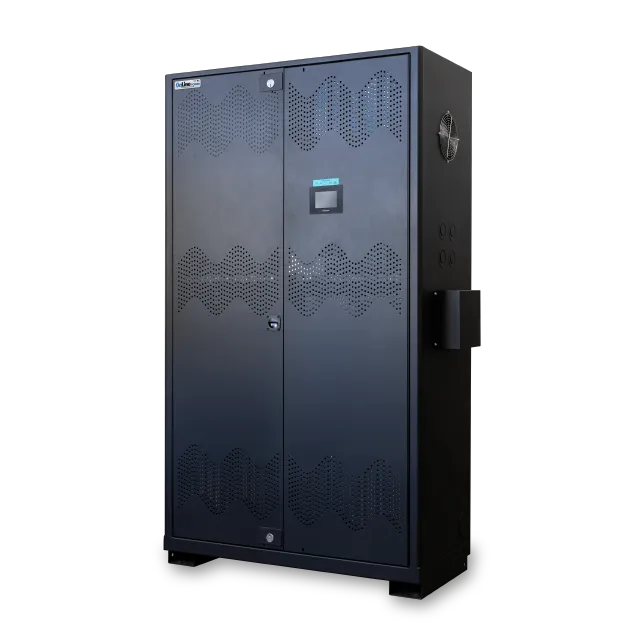

Power Wave 3
Three Phase, 8 – 50kW
Three phase emergency lighting inverter listed to UL924 and UL1778. Internal maintenance bypass, TVSS surge suppression, and 90-120 minute battery backup with main input/output breakers.
Specs & Data Sheets →
Power Wave 4
Three Phase, 8 – 400kW
High-capacity three phase emergency lighting inverter with field-selectable UPS Double Conversion or Green Mode. Independent phase control, GMS remote monitoring, and internal maintenance bypass.
Specs & Data Sheets →
Mini Power Wave
Single Phase, 500W – 2.7kW
Compact single phase UL924 emergency lighting inverter. Both inverter electronics and backup batteries fit into a single enclosure, ideal for small spaces. Pure sine wave output with 90-120 minute backup.
Specs & Data Sheets →

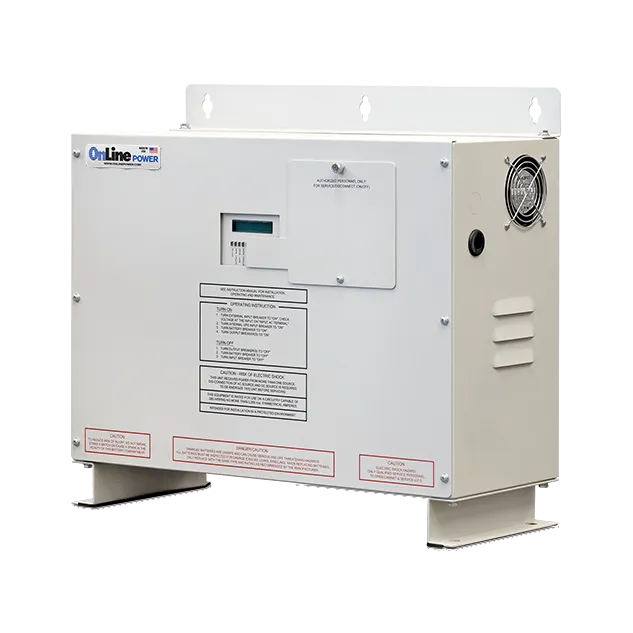

Micro Power Wave
Single Phase, 200W – 490W
Ultra-compact single phase emergency lighting inverter listed to UL924. Electronics and batteries in a single enclosure for tight spaces. 90-minute minimum battery backup.
Specs & Data Sheets →

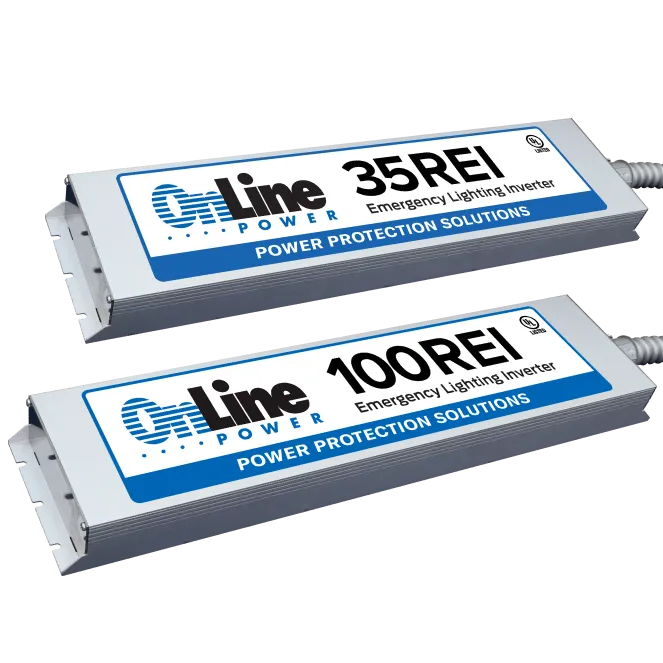

Nano Power Wave
Single Phase, 35W – 100W (Lithium Ion)
Lithium ion powered UL924 remote emergency lighting dimming inverter for LED and fluorescent fixtures. Supports 90-minute emergency lighting with option to derate for 2-hour run time per Life Safety Code.
Specs & Data Sheets →

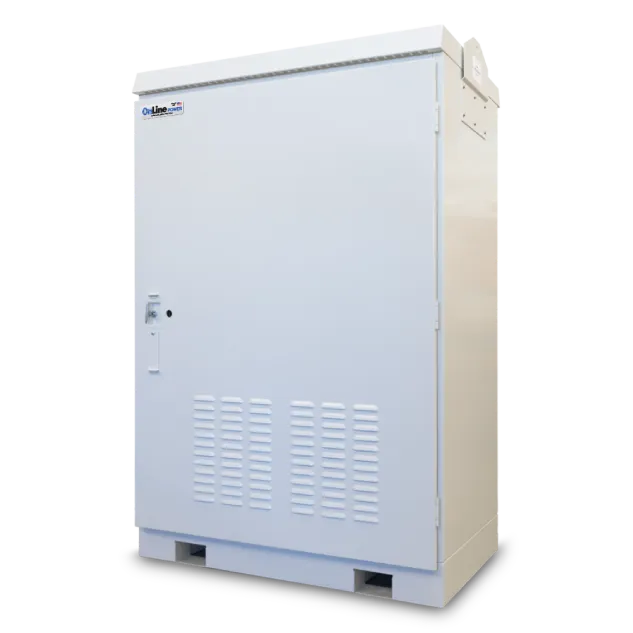

Harsh Environment UPS
Single Phase, 2.1 – 17kW
Emergency lighting inverter built for industrial conditions. Conformal coated electronics, filtered ventilation, and NEMA 3R steel enclosure withstand tough environments while maintaining UL924 compliance.
Specs & Data Sheets →

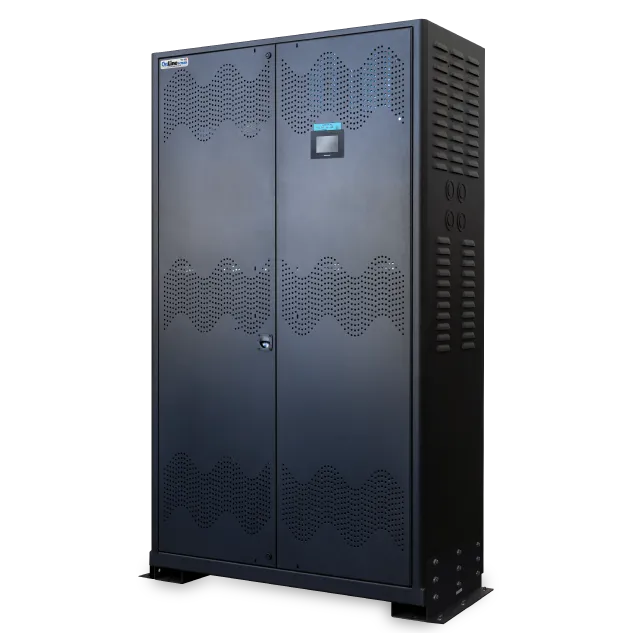

SV Power Wave 1
Seismic Certified, Single Phase, 3 – 17kW
Shaker table tested and OSHPD/HCAI certified single phase emergency lighting inverter. Approved for California hospitals and seismic zones with zero transfer time technology.
Specs & Data Sheets →

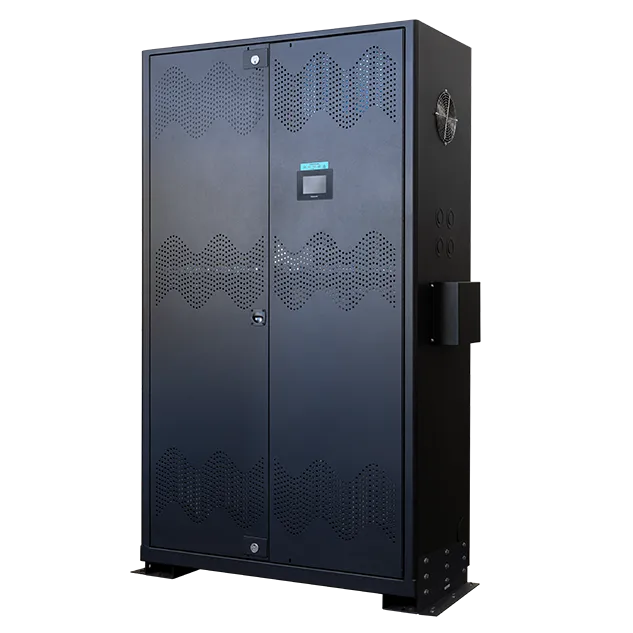

SV Power Wave 3
Seismic Certified, Three Phase, 8 – 50kW
Shaker table tested and OSHPD/HCAI certified three phase emergency lighting inverter for seismic zones and California hospital applications.
Specs & Data Sheets →

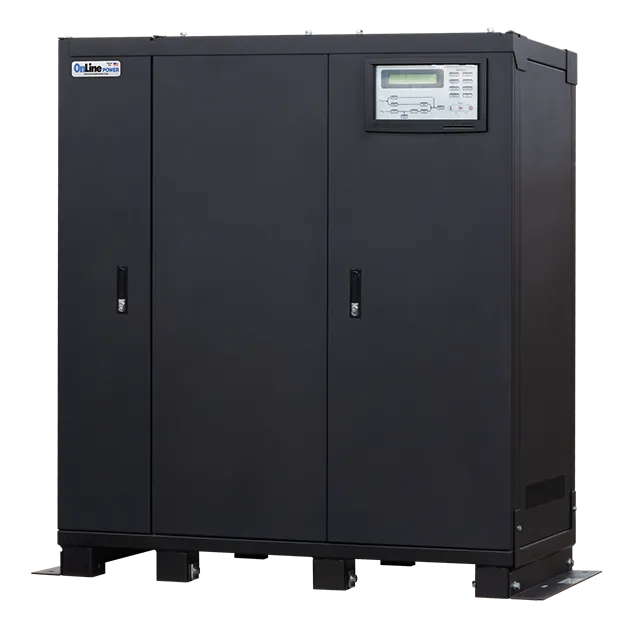

SV Power Wave 4
Seismic Certified, Three Phase, 8 – 400kW
Shaker table tested OSHPD/HCAI certified high-capacity three phase inverter with independent phase control and GMS remote monitoring for seismic applications.
Specs & Data Sheets →Why Centralized Emergency Lighting
Full brightness for the full 90 minutes
Distributed battery packs dim as they discharge, often dropping below the 0.6 fc minimum NFPA 101 requires at the 90-minute mark. Online Power inverters maintain full rated output from first second to last.
Pure sine wave — every LED driver, every time
Modified sine wave inverters cause LED flickering, buzzing, and premature driver failure. Online Power's pure sine wave output with less than 3% THD is identical to utility power.
One system replaces hundreds of battery packs
Centralized batteries last 10-15 years versus 3-5 for distributed packs. One annual 90-minute test replaces hundreds of individual fixture tests — cutting maintenance labor by up to 90%.
Resources & Training
Product Training
At our plant, virtual, or at your office. Hands-on with our engineering team.
Register →Code Requirements
- UL 924 — Emergency Lighting Equipment
- NEC Article 700 — Emergency Systems
- NFPA 101 §7.9 — Life Safety Code
- NFPA 110 — Emergency Power Systems
- OSHPD/HCAI — Seismic Certification
Engineering Support
24-hour load calculations. LED driver compatibility verification. Custom configurations.
Contact Engineering →"Online Power has been our go-to for emergency lighting inverters. Their engineering team is responsive and the products are absolutely rock solid."
Alex Jenkins
Green MEP Engineering
Common Questions
Emergency Lighting FAQ
What is a UL 924 emergency lighting inverter?
Centralized vs distributed (battery-pack) emergency lighting — which is better?
What power range do Online Power emergency lighting inverters cover?
Are Online Power inverters certified for California hospitals (OSHPD/HCAI)?
Do Online Power inverters work with LED and dimmable fixtures?
Related Product Lines
Explore More from Online Power
Ready to Spec Emergency Lighting?
Get a 24-hour load calculation, discuss your project, or request product training.
